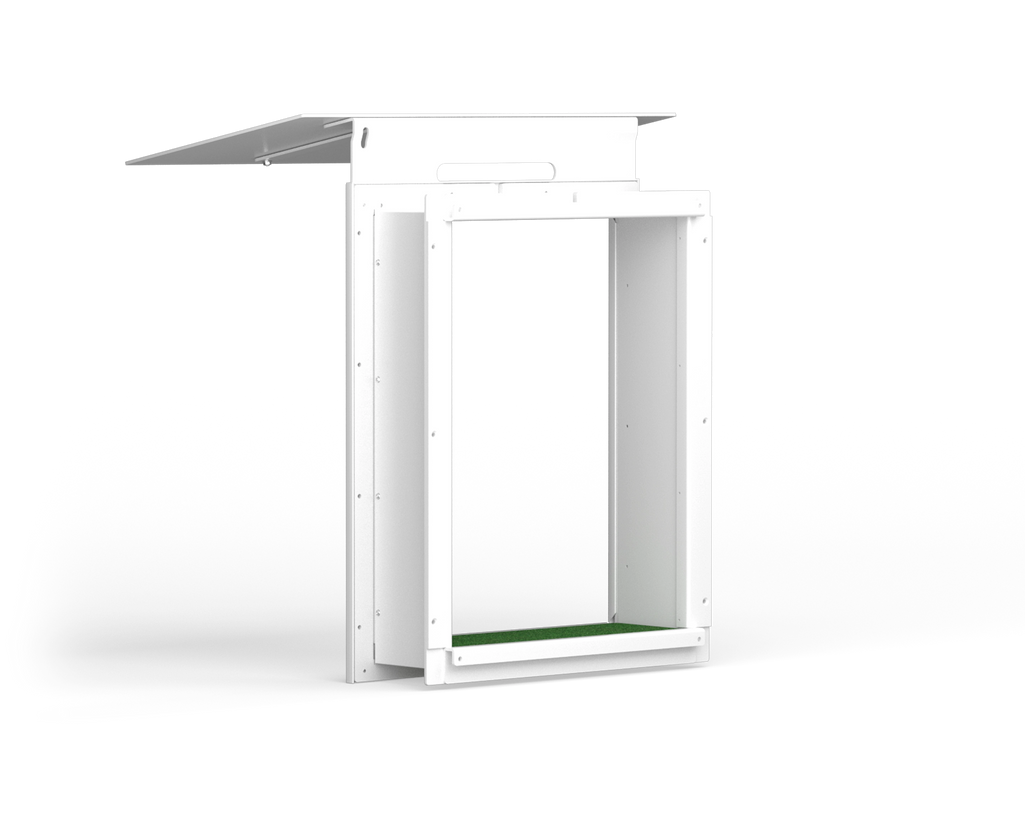

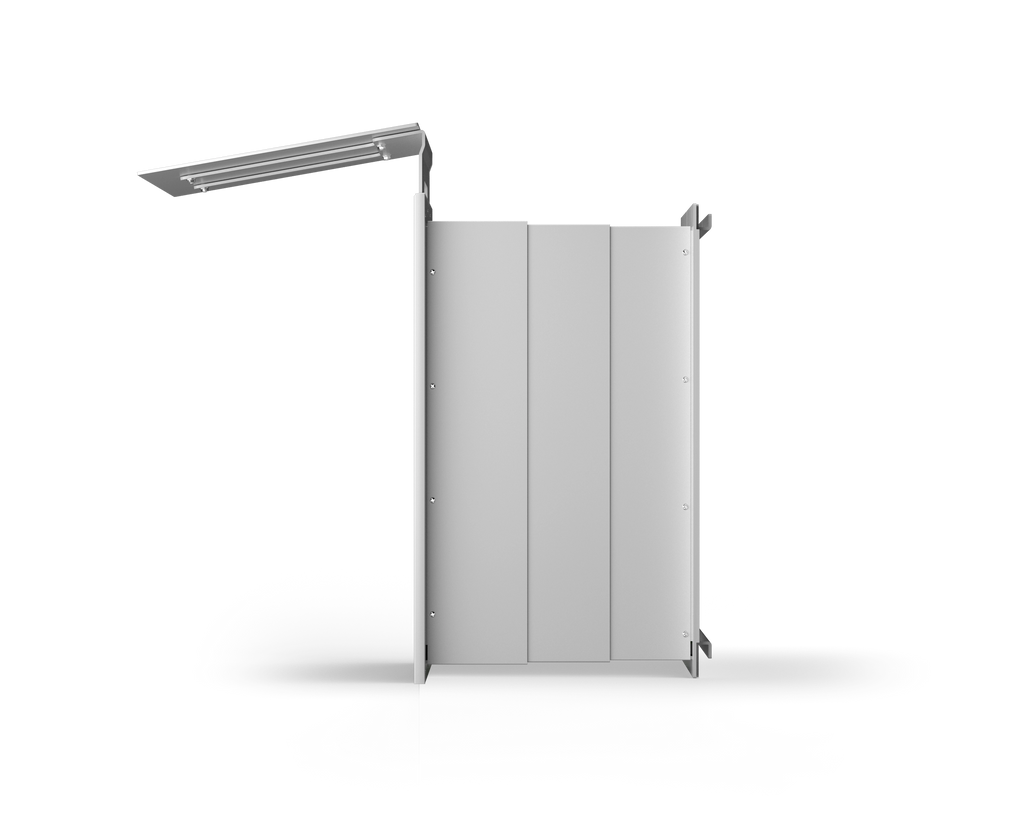

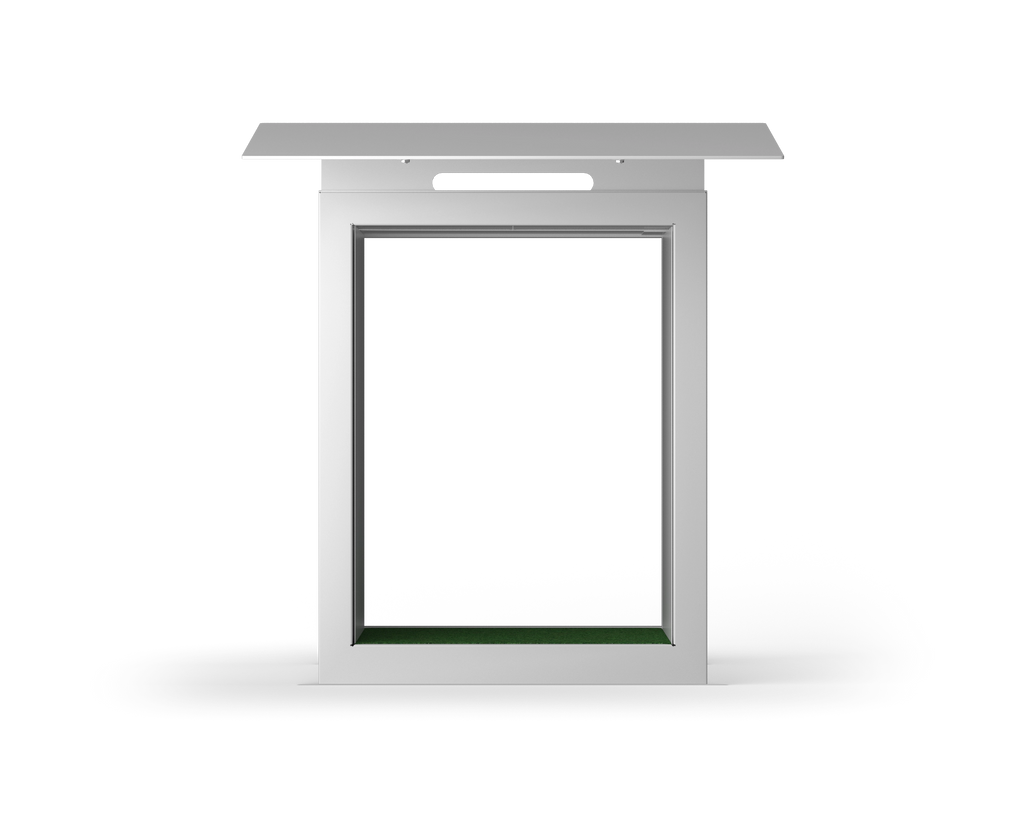

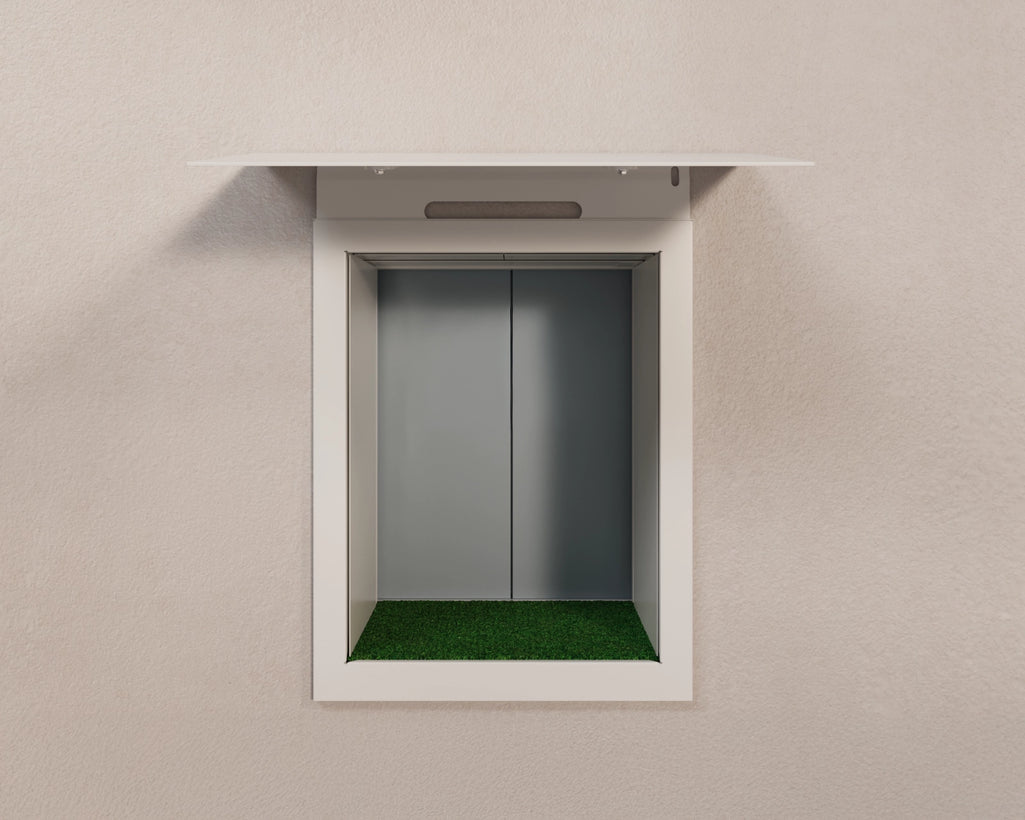

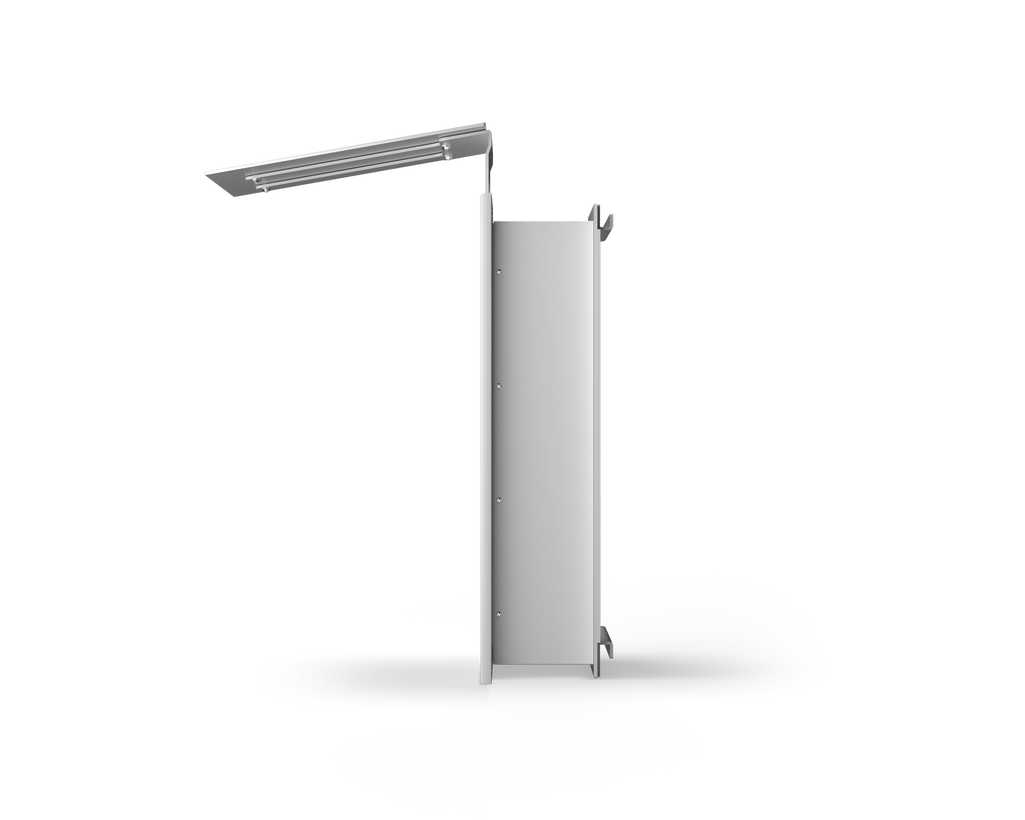

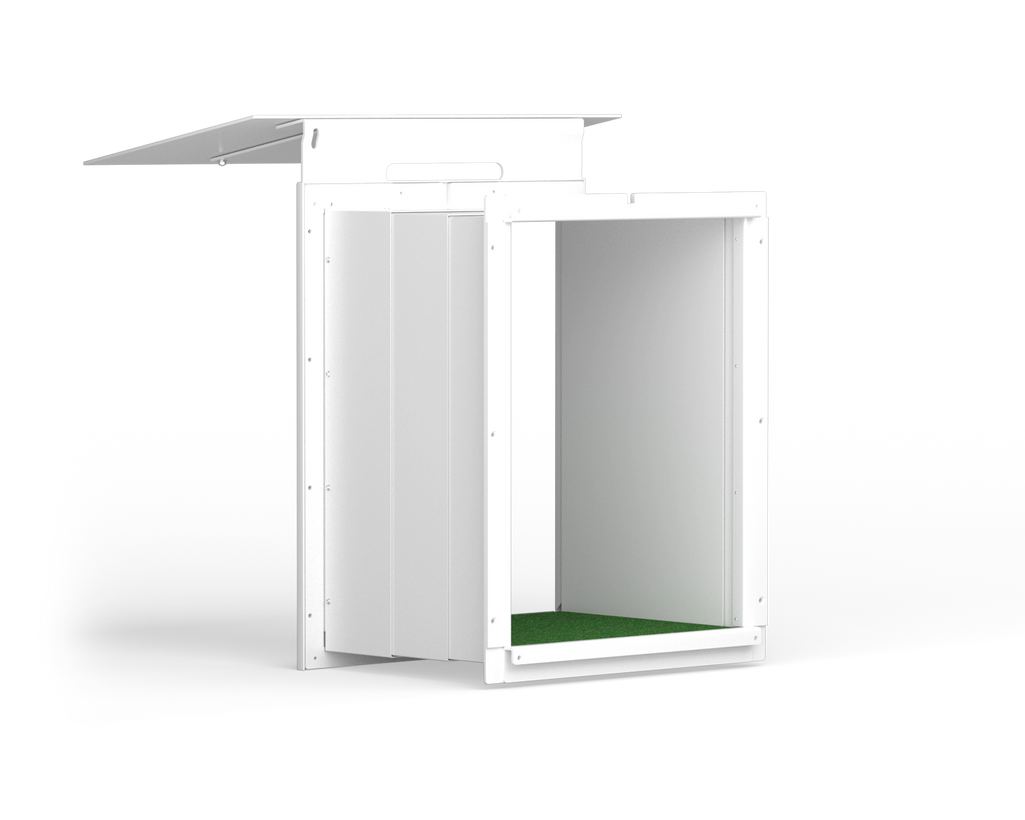

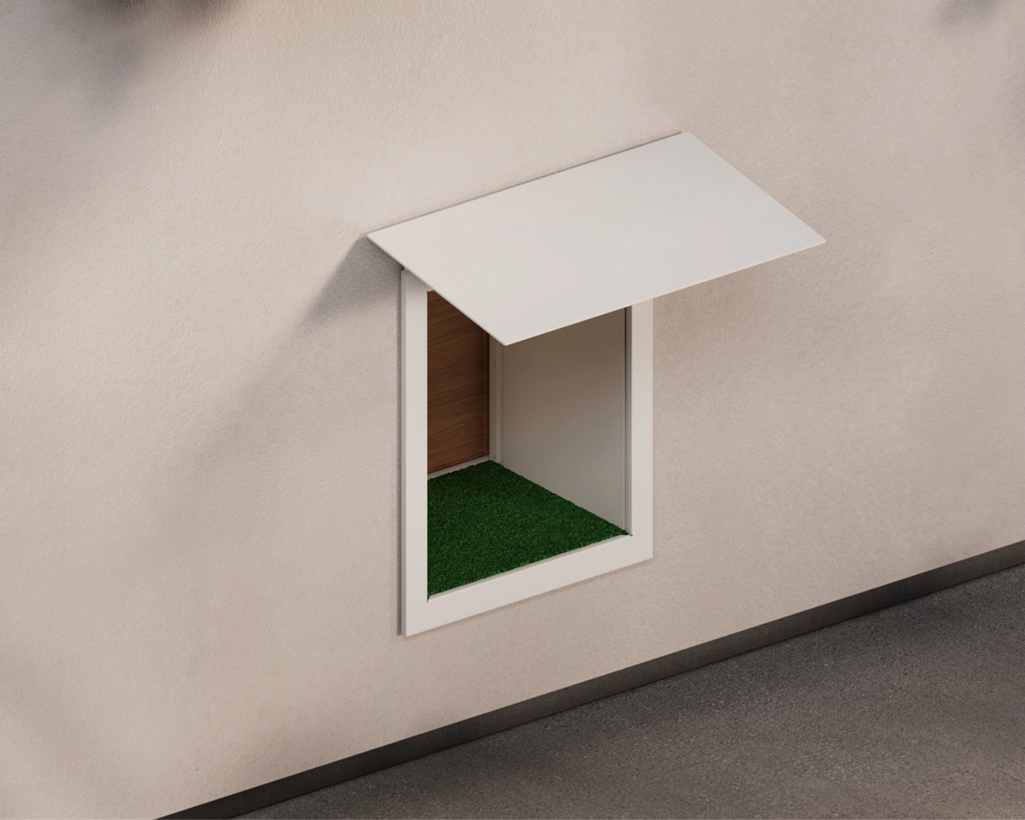

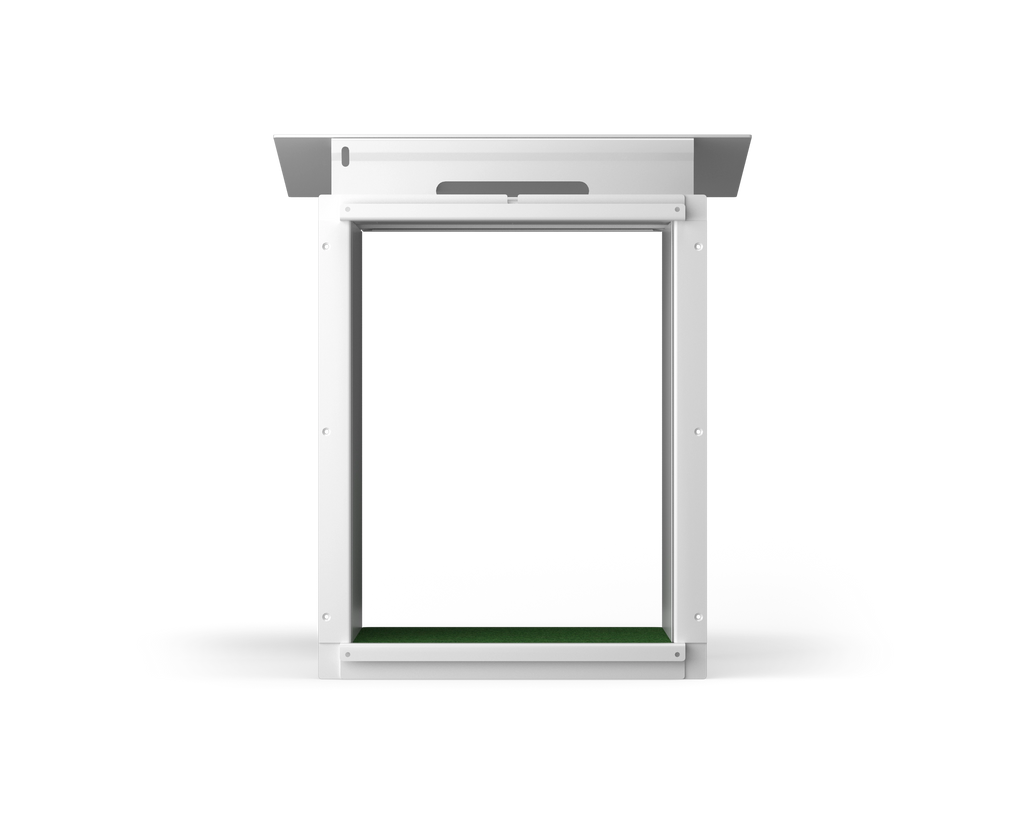

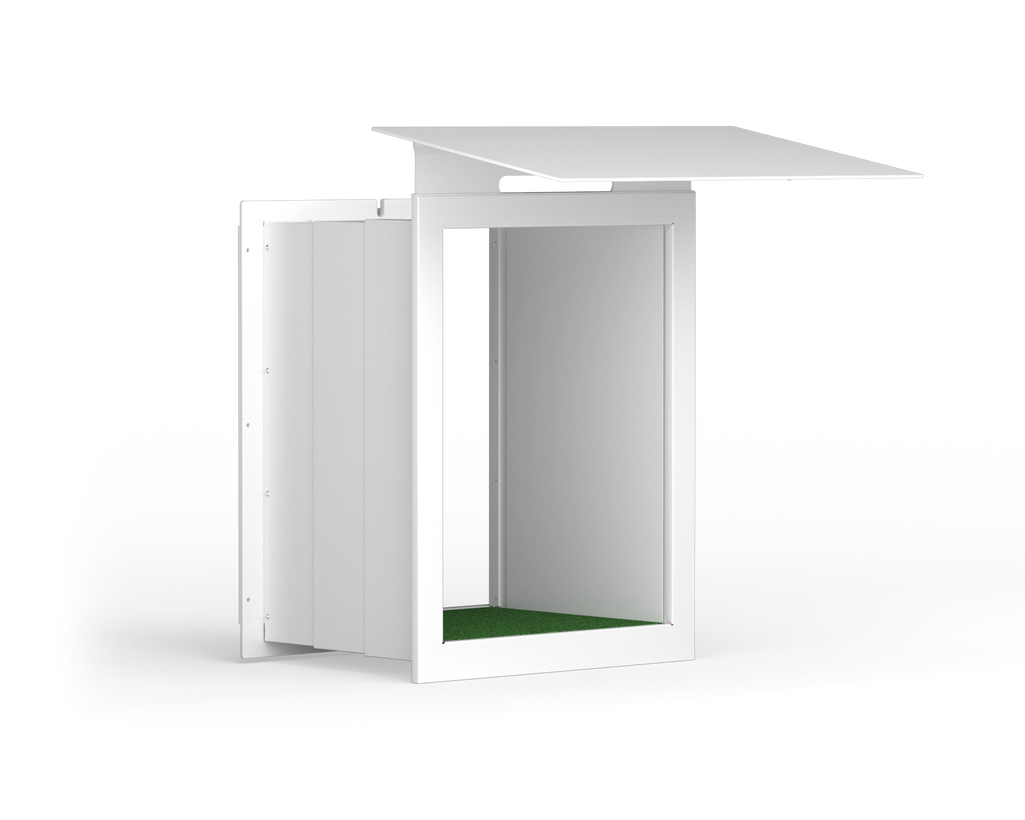

Tunnel & Frame System
$349
Size Guide
If you are purchasing a Pet Door System, make sure all the components are the same size.
Retrofit Compatibility
If you're looking to install Pawport Smart Pet Door onto your existing pet door, use the measurements below to select the right size for your particular opening. An exact fit is not required. Pawport adjusts to fit onto any pet door, guaranteed.
Medium
Large
Extra Large
Smart Pet Door Size
Smart Pet Door Size
Smart Pet Door Size
15.4'' W x 20.5'' H
(391 mm x 521 mm)
(391 mm x 521 mm)
15.4'' W x 24.5'' H
(391 mm x 622 mm)
(391 mm x 622 mm)
15.4'' W x 28.5'' H
(391 mm x 724 mm)
(391 mm x 724 mm)
Existing Pet Door Opening Size
Existing Pet Door Opening Size
Existing Pet Door Opening Size
For any tunnel up to
13.25'' W x 16.25'' H
(337 mm x 413 mm)
13.25'' W x 16.25'' H
(337 mm x 413 mm)
For any tunnel up to
13.25'' W x 20.25'' H
(337 mm x 514 mm)
13.25'' W x 20.25'' H
(337 mm x 514 mm)
For any tunnel up to
13.25'' W x 24.25'' H
(337 mm x 616 mm)
13.25'' W x 24.25'' H
(337 mm x 616 mm)
New Installations or Remodels
If you don't have an existing pet door and you're looking to install Pawport as part of a complete Pawport system, use the information below to help you select the size that is best for your pet.
Medium
Large
Extra Large
Smart Pet Door Size
Smart Pet Door Size
Smart Pet Door Size
15.4'' W x 20.5'' H
(391 mm x 521 mm)
(391 mm x 521 mm)
15.4'' W x 24.5'' H
(391 mm x 622 mm)
(391 mm x 622 mm)
15.4'' W x 28.5'' H
(391 mm x 724 mm)
(391 mm x 724 mm)
Recommended Pet Size
0 - 85 lbs
85 - 125 lbs
125+ lbs
Recommended Pet Height
Recommended Pet Height
Recommended Pet Height
8" - 25"
8" - 29"
8" - 36"
Tips for New Installation Door Selection
-
Pet Height
Measure from the floor to the highest part of your pet's back. Add 2" - 3" to the measured height so your pet can go through comfortably. -
Step Over Height
The "step-over" height is the space between the bottom of the pet door and the surrounding door or wall, chosen based on your pet's size and mobility. It should allow your pet to pass through comfortably. -
Consider Multiple Pets
When choosing a pet door for a home with multiple pets, select one based on the size of your largest pet to ensure it works for the smaller ones as well. Consider the step-over height for the smaller pets, and you may need to install a taller door low enough to accommodate them while still being suitable for your larger pet.
Size Guide
1" Width
Small
15" - 19" (381 mm - 383 mm) Adjustable Length
Medium
16" - 22" (406 mm - 559 mm) Adjustable Length
Large
20" - 30" (508 mm - 762 mm) Adjustable Length
5/8" Width
Small
11" - 12" (279 mm - 305 mm) Adjustable Length
Medium
12" - 15" (305 mm - 381 mm) Adjustable Length
Large
15" - 19" (381 mm - 482 mm) Adjustable Length
